Flash-OS-image
Basic principle：Flash the system backup image to IPC Statement：When the industrial computer system is damaged, missing files make it impossible to run the autopilot, or the system cannot be entered due to a black screen, you can use a U disk to restore the industrial computer system and restore the factory settings.
Prerequisites
According to the following steps
step-1：Insert the USB drive and press F12 during startup (a wired keyboard can be used for this operation) to enter the flashing startup interface.
step-2：Select the second option when using a USB flash drive to restore the image

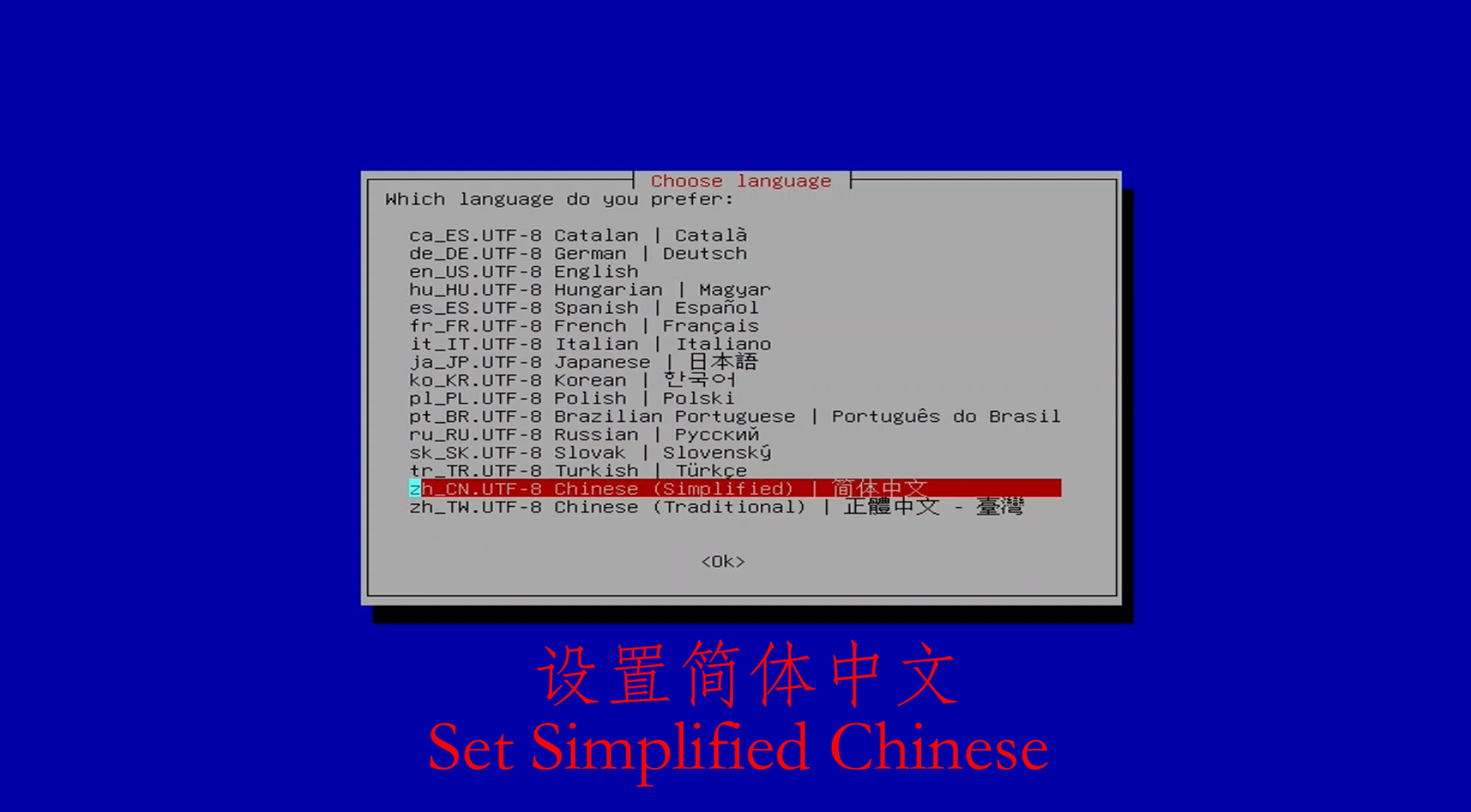

step-3：Select the Chinese interface (you can also choose other languages)
step-4：Keep
step-5：Start Clonezilla(frist)
step-6：The image comes from the USB drive
step-7：Read to U disk(dev/sdb)
step-8：When the hard disk is recognized，ctrl+c
step-9：Select U disk when inserting
step-10：Select the image file in the U disk
step-11：Default the first option(Beginner)
step-12：Select the third option to restore the image of the U disk to the industrial computer
step-13：Select the image name that needs to be restored
step-14：System Disk Location
step-15：Check before restore
step-16：select——poweroff
step-17：Waiting to read mirror
step-18：Enter y
step-19：Wait for the flash (about 10 minutes)
step-20：The system automatically shuts down - flashing has been completed
Note： This U disk is only recommended to restore the image, do not make any modification, add or save other files, so as not to damage the environment of the startup disk.
